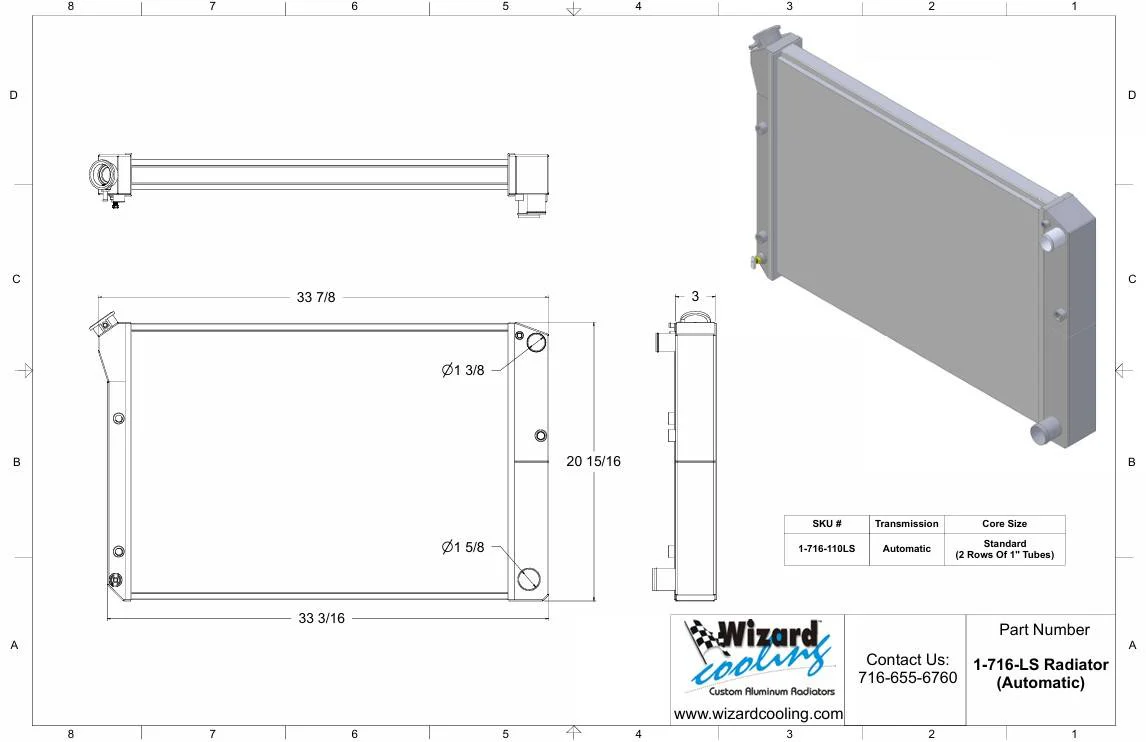

Wizard Cooling Radiator / Fans, LS Swap - 73-87 C10 / 73-91 SUV

- 8-10 Week Lead Time
- Hose Ports are Both on PASSENGER Side

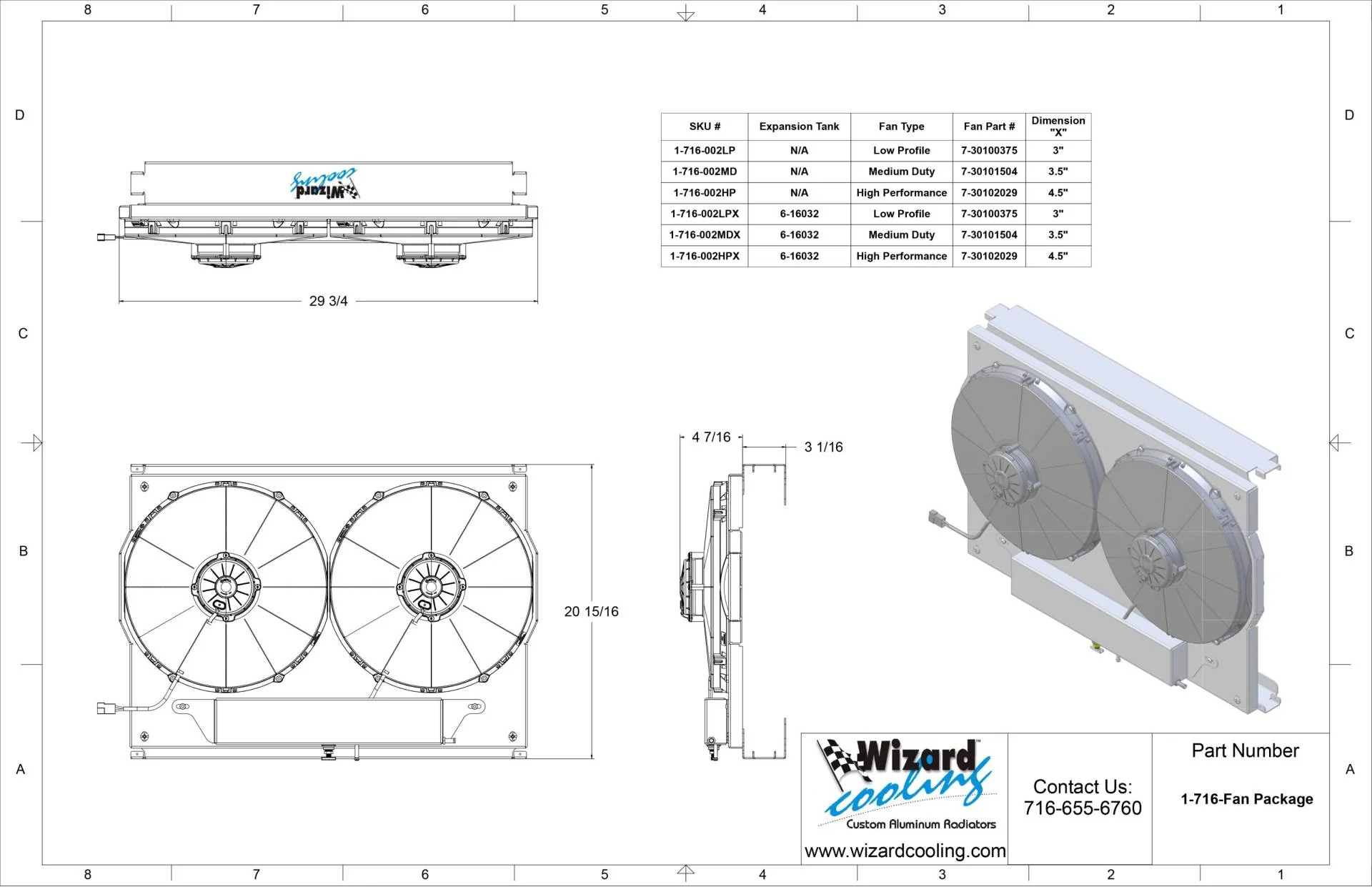

Aluminum Shroud & Low Profile Fans

Fits 28.25" wide GM Applications Aluminum Radiator

Aluminum SHROUD w/ LOW PROFILE Fans

Electrical kit NOT included, but can be added if needed.

This fan package is 3" thick, once added to your radiator your total thickness of your radiator and fan package will be 6" thick.

This kit includes:

• Full Aluminum SHROUD
• Dual 14" LOW PROFILE Fans
• Top and bottom mount plates that will hug our STANDARD (2.25" thick) Core and allow you to easily mount a number of fan packages on. This bracket also features a mount point on the front side that will allow you to easily bolt on our AC condenser and or intercooler should you decide to use it.

This kit includes:

• Engine: LS Swap
• Application Nuance: 21.50“ Tall
• Shroud YES/NO: Yes
• Electric Fan YES/NO: Yes
• CRITICAL THICKNESS: 6.00 IN
• THICKNESS OF CORE: 2.25 in (Standard High Performance Core)
• TRANSMISSION OIL COOLER INCLUDED: Yes
• Core Thickness: 2.25 in (Standard High Performance Core)
• MOUNTED AC CONDENSER: No
• INLET LOCATION: Passenger Side
• OUTLET LOCATION: Passenger Side

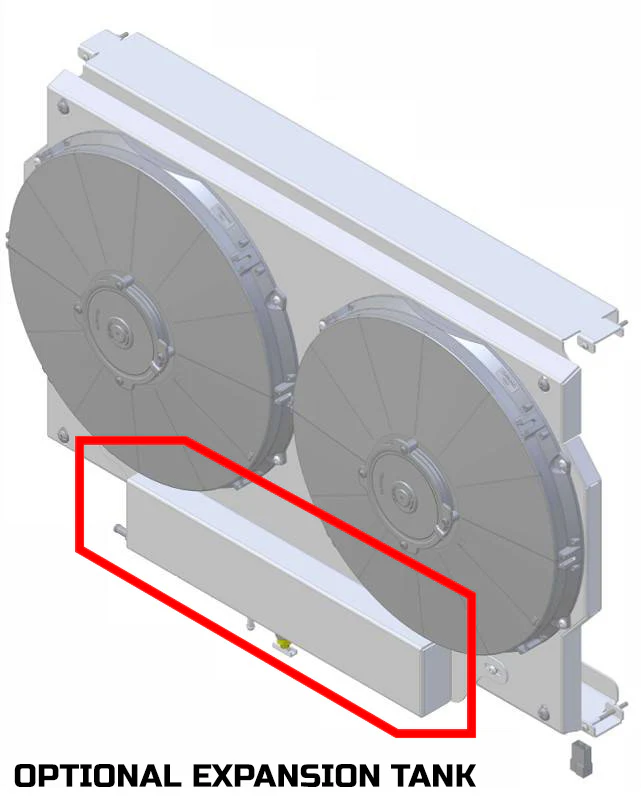

• Expansion Tank Included: No
• CORE MATERIAL: Aluminum
• TUBE INSIDE DIAMETER: 1 IN
• TRANSMISSION OIL COOLER TYPE: Plate
• TRANSMISSION OIL COOLER PLATE QUANTITY: 5
• CORE ROW QUANTITY: 2
• TRANSMISSION OIL COOLER FITTING DIAMETER: 1/4 NPT
• CORE WIDTH: 28.25 IN
• TANK MATERIAL: Aluminum
• CRITICAL THICKNESS ALL: 5.00 IN
• CRITICAL THICKNESS ALL: 5.50 IN
• CRITICAL THICKNESS ALL: 6.00 IN
• CRITICAL THICKNESS ALL: 6.50 IN
• CRITICAL THICKNESS ALL: 7.50 IN
• CUBIC INCHES OF CORE: 1367 CuIn
• OUTLET HEADER WIDTH: 3 IN
• OUTLET HEADER LENGTH: 20.75 IN
• OUTLET DIAMETER: 1.625 IN
• MOUNTING TYPE: Saddle
• DOWN FLOW OR CROSS FLOW TYPE: Cross Flow
• Electric Fans: No
• INLET HEADER WIDTH: 3 IN
• INLET HEADER LENGTH: 20.75 IN
• INLET DIAMETER: 1.375 IN
• FINISH: Aluminum
• CORE HEIGHT: 20.75IN
